产品资讯-台湾moujen行程开关-MJ |
|
|
|
|
 防油限制開關 (Made in
Taiwan) |
|
|
 功能 :
 可配合各種不同之連桿及頭
具多種使用特性曲線
接線頭具帽式覆蓋螺絲
防塵、防油、防水
不鏽鋼主零件
規格及尺寸標準化 1/2” conduit entry.
適用溫度 +15°F to +175°F (-10℃ to +80℃)
所有密封式限制開關都是雙迴路限制開關,1NO(常開)與1NC(常閉 )迴路,各迴路接點俱為兩段式絕緣。
|
|
|
|
| 電氣迴路 : |
|
|
 |
|
|
| 額定電壓 : |
|
|
| 10A |
125 or 300V AC(resistive) |
0.8A |
125 VDC(resistive) |
0.4A |
250V DC |
1/2HP |
125 V AC |
1HP |
250 V AC |
|
|
|
| |
 |
|
| 特性 : |
|
|
|
|
|
| Operating speed |
1mm to 2m/sec |
Operating frequency |
Mechanically: 120 operations/min.
Electrically: 30
operations/min. |
Contact resistance |
15m  max.(initial) |
Insulation resistance |
100M min.(at 500 VDC) |
Dielectric strength |
1,000 VAC, 50/60 Hz for 1 minute between
non-continuous terminals
2,200 VAC, 50/60 Hz for 1
minute between each terminal and non-current-Carrying
metal part and between each terminal ground. |
Vibration |
Malfunction durability:10 to 55Hz 1.5mm double
amplitude
|
Shock |
Mechanical
durability:
Approx.1,000m/sec2 (approx.
100G's)
Malfunction
durability:Approx.300m/sec2 (approx.30
G's) |
Ambient operating temperature |
Operating:-10 to +80
|
Humidity |
95% RH max
|
Service life |
Mechanically:
15,000,000 operations
min
Electrically:(2.5A, 110VAC)MAX
500,000
operations min. |
Degree of protection |
IEC 529 class IP65
(Sealed accessories
requirement) |
|
|
|
| |
|
|
| ORDER GUIDE: |
|

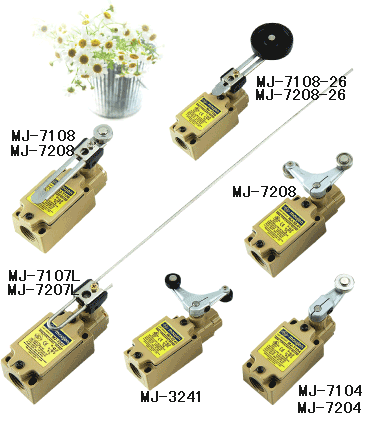

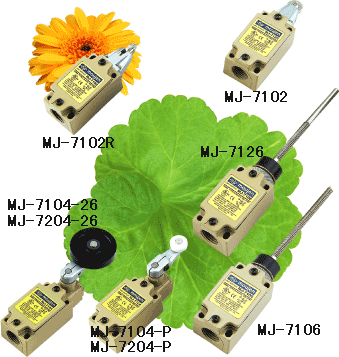

標準型~兩個螺絲孔蓋 :
| MJ-7101 |
MJ-7102 |
MJ-7102R |
MJ-7103 |
MJ-7104 |
MJ-7106 |
MJ-7126 |
MJ-3241 |
MJ-3242 |
MJ-3243 |
MJ-3244 |
MJ-7107 |
MJ-7107L |
MJ-7108 |
MJ-7204 |
| MJ-7207 |
MJ-7207L |
MJ-7208 |
MJ-7000 |
|
三個螺絲孔蓋 (定製品):
| MJ-7101O |
MJ-7102O |
MJ-7102RO |
MJ-7103O |
MJ-7104O |
MJ-7106O |
MJ-7126O |
MJ-3241O |
MJ-3242O |
|
MJ-3243O |
MJ-3244O |
MJ-7107O |
MJ-7107LO |
MJ-7108O |
MJ-7204O |
MJ-7207O |
MJ-7207LO |
MJ-7208O |
|
塑膠滾輪 (定製品):
| MJ-7104-P |
MJ-7204-P |
MJ-7108-P |
MJ-7208-P |
 50mm
橡膠滾輪 (定製品): 50mm
| MJ-7104-26 |
MJ-7204-26 |
MJ-7108-26 |
MJ-7208-26 |
金屬滾輪 (定製品):
| MJ-3241-M |
MJ-3242-M |
MJ-3243-M |
MJ-3244-M |
|
|
| ROTARY ACTUATION : |
|
 |
|
|
|
| OVERTRAVEL TYPE : |
|
The Overtravel Type is a limit switch which is
provided with a greater OT to facilitate dog setting.
Since
this type is indentical to the Basic Type in dimension, both
types are interchangeable.
The Overtravel Type is
classified into two versions -71 series and -72
series.
-71 series
The head of -71 series switch
can be installed in any of the four directions:45°
operation on either side-possible
-72 series
The head of -72 series switch
can be installed only in two directions, forward and
backward:
90° operation on either side-possible |
|
| |
|
|
|
| |
|
|
| |
REMARK :
MJ-7107L,MJ-7207L→ 395mm 長柄: 395mm
IN-LINE PLUNGER ACTUATION :
Characteristics:OF-Operating Force;
PT-Pretravel;
OT-Over Travel ; DT-Differential Travel
RF-Release Force; OP-Operation
Position;
TF-Travel Force; RP-Release Position; TT-Total Travel
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
